What's in the box:

• AudioFuse 16Rig unit
• Power Supply
• 2x USB Cable

Description:

Studio mastermind interface

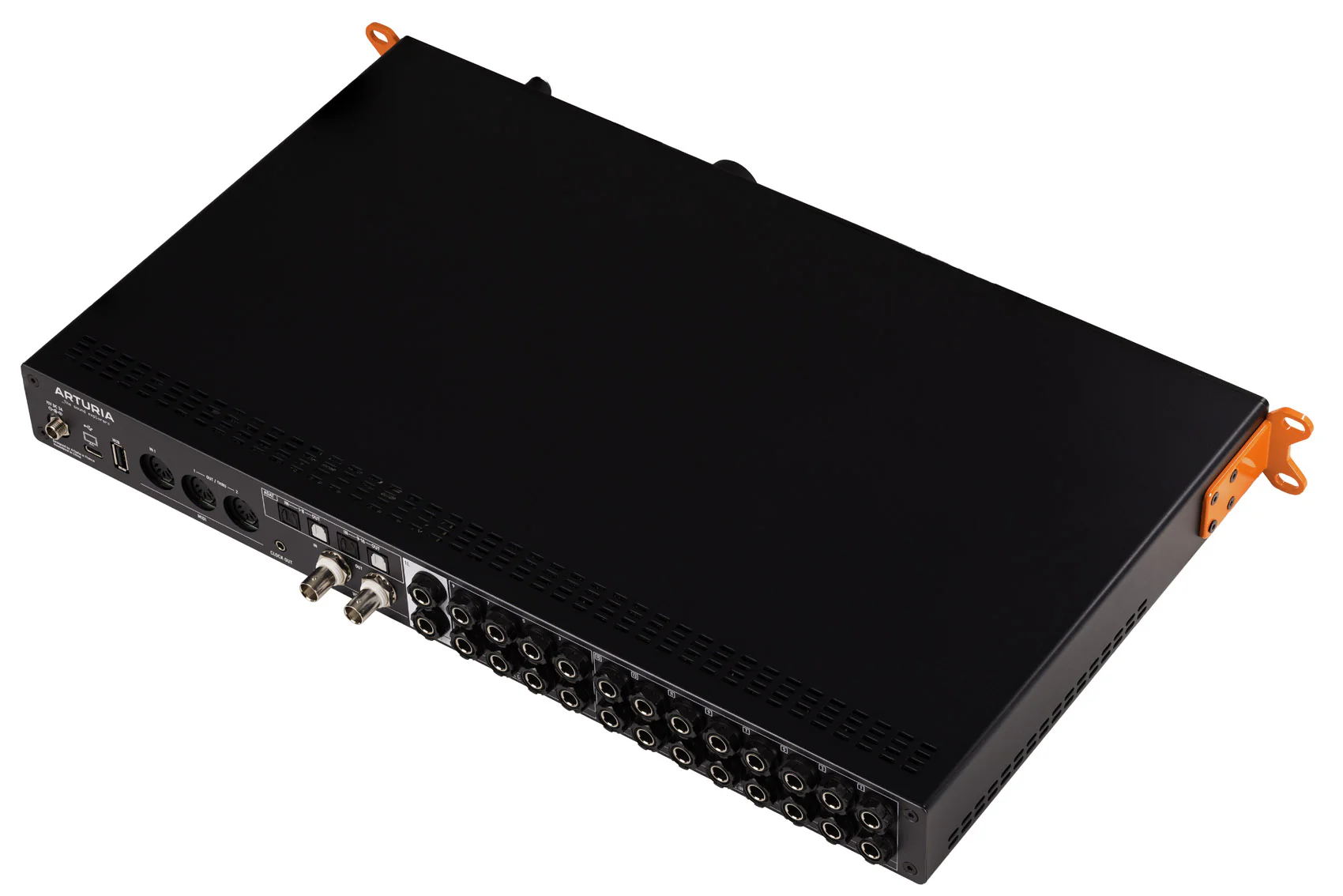

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, featuring 16-channel immersive monitoring, always sounding pristine and always ready to go.

Make your sound count
Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.

A standalone mixer
For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching and immersive audio monitoring.

Intricate audio routing
Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.

Quantity, meet quality
Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow
Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It’s time your music: had an upgrade

• x16 ADAT I/O
• x8 Analog Line DC coupled Outputs
• x16 Analog Line Inputs
• x1 MIDI In & 2x MIDI Out/Thru
• Wordclock I/O
• 24-bit AD/DA 192kHz
• Creative FX Bundle Included

Smart design
Sometimes it’s the little things that matter most. You need your gear to complement and enhance the way you work, and that’s the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included
Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from our award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

Analog Lab Intro
A superb software instrument containing hundreds of amazing presets taken from Arturia’s award-winning V Collection. Analog synths, pianos, organs, and more await.

Pre 1973
Inspired by the hugely influential British studio sound, the Arturia Pre 1973 is the key to getting that harmonically exciting, solid-state 70s tone.

Pre V76
The key to getting that “White Album” sound, these reinvented German engineered, tube-driven broadcast preamps were beloved by Abbey Road.

Filter Mini
Dr Robert Moog’s iconic, smooth ladder filter, accurately recreated and updated with an LFO, envelope follower, and a step sequencer.

Chorus JUN-6
Chorus JUN-6 resurrects a classic synth effect, with 3 simple modes offering glorious stereo width, subtle analog movement, and perfectly-emulated BBD warmth.

Comp FET-76
Modelled after the most sought-after compressor ever made, the Class A FET sound our 1176 software recreation seems to make everything sound better.

Delay TAPE-201
The Arturia Delay TAPE-201 gives you everything you love about the sound of vintage hardware tape delays, but with the reliability and versatility of software.

Rev PLATE-140
The silky-smooth, resonant tone of vintage plate reverbs have shaped the sound of many iconic vocal performance, given the drums of best-selling tracks their air, and brought whole mixes together with bright, sweet overtones.

Phaser BI-TRON
Phaser BI-TRON is a double-barrelled modulation powerhouse that lets you weave your own kinetic sound with advanced routing, dual phaser circuits, and beautiful analog character.

Pre TridA
Music industry gold-dust. Get that ultra-rare Soho preamp sound and musical EQ that added flavor to countless best-selling hits for over half a century.

Comp DIODE-609
Based on the iconic british stereo compressor and limiter with a distinctly characterful crunchy response - great for drums.

AudioFuse Range - The new studio reference
The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision and bring all your gear together to create the music you always wanted to.

High performance recallable preamps
The superb inputs of our interfaces give you the most vibrant, accurate sound around, with practically zero noise even at max gain, and enormous dynamic range. Be true to your music.

Analog signal path
The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Huge versatility
Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Features:

• 16 x TRS analog inputs

  • Includes 2 x high-quality digitally-controlled preamps
  • Inputs 3 & 4 also available as 3.5mm stereo input
• 12 x analog outputs

  • Includes 8 x DC-coupled TRS line outputs
  • Stereo monitor outputs
  • 6.35mm front-panel outputs for reamping, dual-headphones
• 2 x ADAT in, 2 x ADAT out

  • Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz
• Wordclock in & out - 1 x MIDI in, 2 x MIDI out/thru

  • 5-pin DIN connectors
  • Route MIDI standalone
• Low-latency USB-C connection

  • Class-compliant MIDI
  • 3 x USB hub connections
• Two internal standalone mixers

  • No computer connection needed
  • Cue mixer for sub-mixing and added flexibility
  • Main mixer controllable by MIDI
• Immersive audio monitoring & speaker control

  • Configure Dolby Atmos (up to 9.1.6), Auro-3D, 5.1, 7.1, Quad, or any custom layout.
• Color display with rotary control & menu buttons
• Desktop or 1U rackmount configuration
• Includes AudioFuse Control Center
• Includes AudioFuse Creative Suite

  • Analog Lab Intro
  • Comp DIODE-609* NEW
  • Pre 1973
  • Pre V76
  • Pre TridA
  • Filter MINI
  • Chorus JUN-6
  • Comp FET-76
  • Delay TAPE-201
  • Rev PLATE-140
  • Phaser BI-TRON
• Instrument dimensions

  • size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements:

• Windows

  • Windows 10 or later (64-bit)
  • 4 GB RAM (8 GB+ recommended)
  • 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)
• Apple

  • OS X 10.13 or later (64 bit)
  • 4 GB RAM (8 GB+ recommended)
  • 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)

---

All About Your RCM PRO:

How To Setup a Rockville Condenser Microphone with Your Computer:

How To Set Up a Twitch Stream with Rockville Equipment:

What's in the box:

• (22 gauge, 10 feet) XLR to XLR Cable - To connect to the phantom power input on your mixer or interface
• (22 gauge, 10 feet) 3.5mm to XLR Cable - To connect the microphone to your computer
• Metal Shock Mount
• Large Wind-Screen/Pop-Filter
• Owners Manual
• Warranty Card

Description:

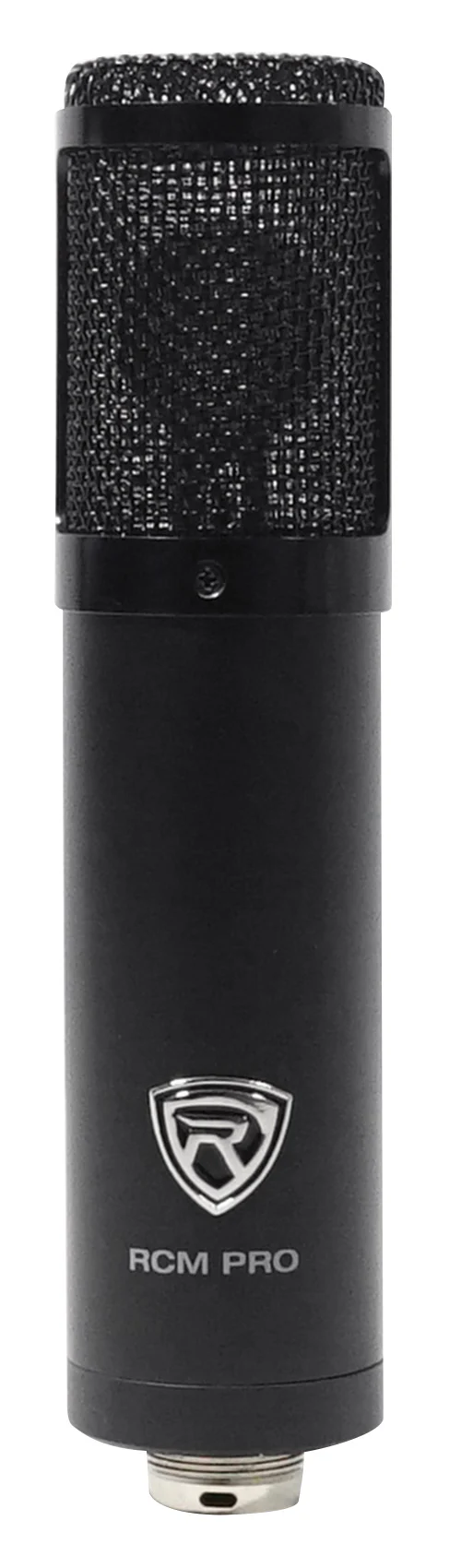

Introducing, the Rockville RCM PRO, our newest high-quality, professional studio/recording condenser microphone! With it's large diaphragm it provides smooth, natural sound and low noise, it also delivers great bass, mids, and highs on all of your recordings. This microphone is very sensitive to incoming sounds to give you the best possible sound! In addition, it includes a 25mm cartridge that allows for a bigger pickup area to pick up incoming sound. The cartridge is the most important aspect that determines the sound quality, and the RCM Pro has one of the best quality cartridges available for any microphone under $150. This microphone sounds better than other name brand microphones that cost twice the price!

The body of the microphone is made of a special zinc metal material. The super strong construction prevents noises from shocks and vibrations. This is especially important when recording loud music including drums and bass. The microphone head is made of strong, high quality steel and features a one-piece microphone head design. Most microphones will have a microphone head that is 2 pieces glued together. Our one-piece microphone head ensures longer life, and better durability. In addition, it helps to eliminate unwanted vibrations that may occur. This microphone has two capacitors (22µ50V and 47µ16V). We used Samsung capacitors from Korea, which are the highest quality capacitors on the market. These are important to help stabilize the voltage so that your recordings are consistent throughout, even if there are sudden changes in the volume or frequency ranges. We compared this microphone to the 3 most famous brands of microphones and the RCM PRO outperformed similar microphones that sell for over double the price!

Features:

• Rockville RCM PRO Professional Studio/Recording Condenser Microphone
• Best Applications: Home-Studio, Recording Studio, Broadcasting, Podcasts, Live Performances, and much more!
• Large diaphragm for smooth, natural sound and low noise
• 25mm Large Cartridge - Allows For Bigger Pickup Area
• Two Large Capacitors: 22µ50V and 47µ16V
• Large Diaphragm - Provides Smooth Natural Sound, and Great Bass, Mids, & Highs
• High SPL Handling and Wide Dynamic Range
• Cardioid Polar Pattern Reduces Pickup of Sounds From Sides and Rear, Reducing Unwanted Noise
• Element: Fixed-charge back plate, permanently polarized condenser
• Microphone Head is Made of High Quality Steel featuring One-Piece Head Design
• Microphone Body Is Made of Special Zinc Metal Material - Prevents Noise From Shock and Vibrations
• Frequency Response: 20Hz - 20 kHz
• Open Circuit Sensitivity: -30dB ±2dB (0dB = 1V/Pa @ 1 kHz)
• Impedance: 100 Ohms
• Equivalent Noise Level: = 23 dB A (IEC581-5)
• Maximum Input Sound Level: 142dB SPL (THD = 1.0% @ 1 kHz)

• Noise: 20dB SPL
• Dynamic Range (Typical): 124 dB, 1 kHz @ Max SPL
• Signal-to-Noise Ratio: 74 dB, 1 kHz @ 1 Pa
• PCB Layout: Surface Mount
• Fixed Crossover Filter Cutoff Frequency: 50Hz - 16 kHz
• Power Requirements: 48V DC Phantom Power
• Output Connector: 3-Pin XLR
• Product Weight: 1.76 lbs
• Product Dimension: 7.55" x 1.77" x 1.77"
• Shipping Weight: 3.32 Lbs
• Shipping Dimensions: 13.98" x 7.87" x 3.15"
